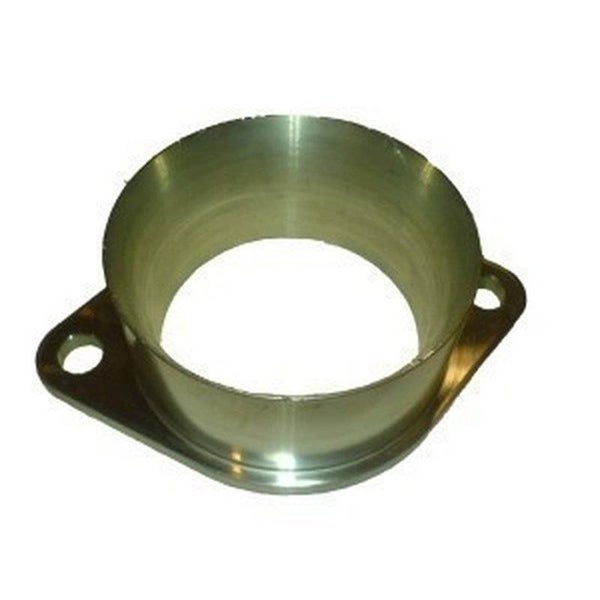

Flange Air GT28R 63,5mm

Adapter flange compressor inlet

CNC milled Aluminium adapter for GT25R and GT28R

Several Garrett turbochargers of the GT25 to GT28 series do not feature a hose connection at the compressor housing but bolt-on flanges. These require an adapter to fit a hose to the compressor housing. The flange is made of Aluminium CNC milled. Perfect fit and perfect seal thanks to premium seal ring.

Material: Aluminium
Total dimensions: 21mm (total height), 5mm (socket only)
Dimensions cut-out: 54mm (Innen - slightly conical)
Hose connection: 63,5mm / 2,5" außen
Hole distance: 84mm
Thread: M8
Extras / Features: with bolts and seal ring

For / Fits:
GT28R (intake)
GT28R, GT2860R, GT28, T28, T28BB
as well as GT2860RS (GT28RS) with GT28R compressor housing
