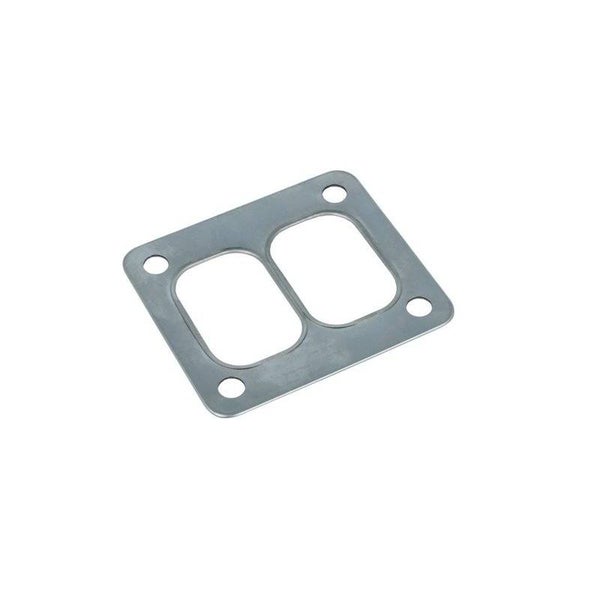

Exhaust Manifold Gasket T4 / GT4X / EFR divided / Twin Scroll

Premium metal manifold to turbine housing gasket

Gasket between exhaust manifold and turbocharger

The gasket is made of stainless steel die-cut. The imprinted grooves put the sealing surface exactly where needed. Please keep in mind that each assembly and disassembly requires a new gasket.

Material: stainless steel
Total dimensions: 114mm x 96mm
Dimensions cut-out: 76mm x 50mm (Steg 5mm)
Hole distance: 83mm x 70mm

For / Fits:
turbocharger T4X / GT4X / EFR withdivided / Twin Scroll turbine housings

Garrett T4 , T04
Garrett GT40 , GT42 , GT45 , GT47
Garrett GT4082
Garrett GT4088
Garrett GT4708 , GT4780
Garrett GT4718 , GT4788
Garrett GT40R , GT4088R
Garrett GT40/42R , GT4042R , GT4094R
Garrett GT45R , GT4508R
Garrett GT47R , GT4780R , GT4708R
Garrett GT47R , GT4788R , GT4718R
BorgWarner AirWerks S200SX
BorgWarner AirWerks S300 (T4 TwinScroll)
BorgWarner AirWerks S300SX3 (T4 TwinScroll)
BorgWarner AirWerks S400SX3
BorgWarner EFR7064-T and -WG (T4 TwinScroll)
BorgWarner EFR7670-T and -WG (T4 TwinScroll)
BorgWarner EFR8374-T and -WG (T4 TwinScroll)
BorgWarner EFR9180-T and -WG (T4 TwinScroll)
