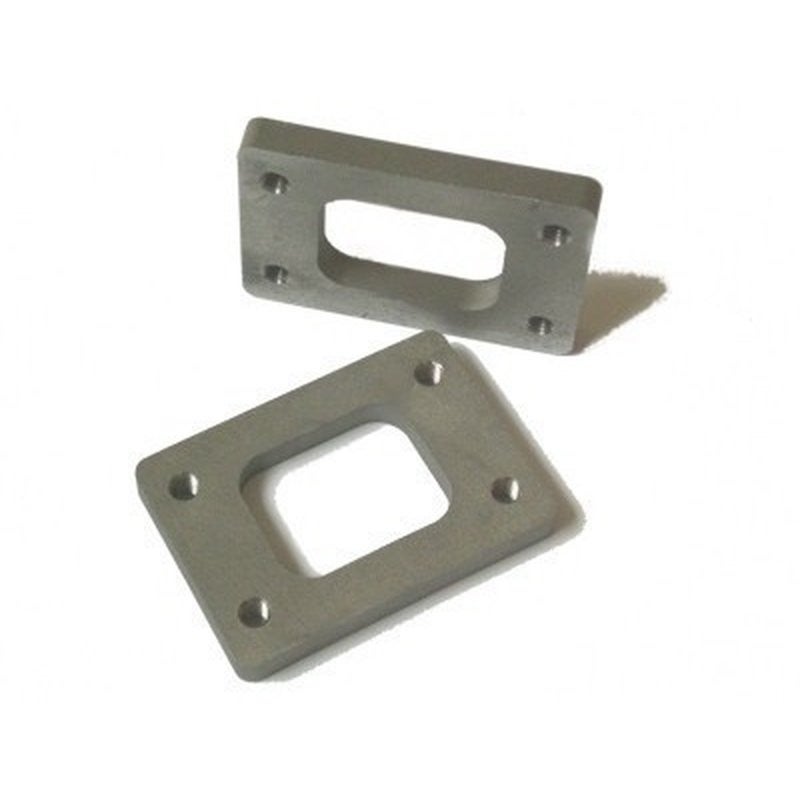

Exhaust Manifold Flange T3 / GT3X

Flange for exhaust manifold construction

Premium steel manifold to turbine flange with threads

Offering our exhaust manifold flanges we supply the flange needed to connect the turbocharger to the exhaust manifold. Additionally we supply elbows and collectors needed for the fabrication of an exhaust manifold. All flanges are water-jet cut to prevent warping during the cutting process. They are perfectly even. The flange thickness is chosen by our experience.

Material: steel
Material thickness: 12mm
Total dimensions: 110mm x 69mm
Dimensions cut-out: 61mm x 44mm
Hole distance: 86mm x 46mm
Thread: M8
Extras / Features: Thread!! No holes!

For / Fits:
turbocharger T3(X) bis T37
turbocharger KKK27 u.ä.
Garrett T3
Garrett T3/T4 (excl. pure T4-turbos)
Garrett GT32
Garrett GT35
Garrett GT37
Garrett GT30R , GT3076R , GT3076RS , GT30RS , GT30R HF
Garrett GT35R , GT3582R , GT35/40R , GT35R HF
Garrett GT3082R , GT30/40R , GT3082R HF
Garrett GT3071R
BorgWarner KKK K27
