Flange Air GT28R 76mm

€ 62,36

Flange Air GT28R 76mm

€ 62,36

lange Air GT28R 76mm

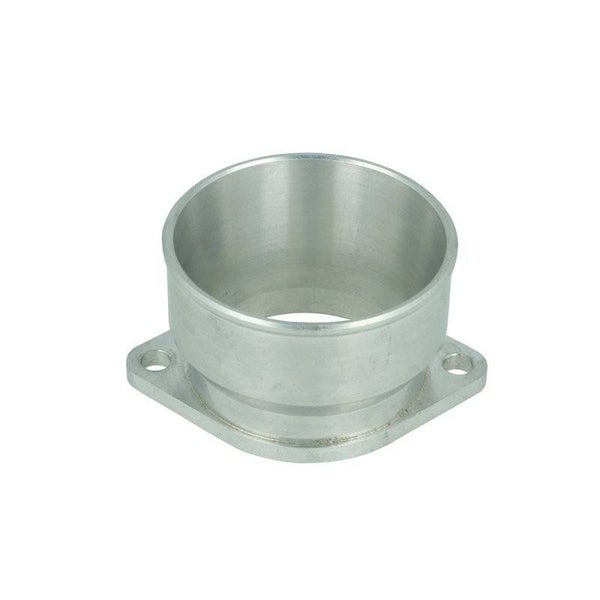

Adapter flange compressor inlet

CNC milled aluminum adapter for GT25R and GT28R

Several Garrett turbochargers of the GT25 to GT28 series do not feature a hose connection at the compressor housing but bolt-on flanges. These require an adapter to fit a hose to the compressor housing. The flange is made of aluminum CNC milled. Perfect fit and perfect seal thanks to premium seal ring.

Amount: 1 flange, 1 seal ring
Material: aluminum
Total dimensions: 50mm (total height), 5mm (socket only)
Dimensions cut-out: 68mm to 54mm (Innen konisch)
Hose connection: 76mm / 3' außen
Hole distance: 84mm
Thread: M8
For / Fits:
GT28R (intake)
GT28R, GT2860R, GT28, T28, T28BB
as well as GT2860RS (GT28RS) with GT28R compressor housing
