Flange Air GT25R / GT28R (2-Bolt)
Flange Air GT25R /GT 28R (2-bolt)

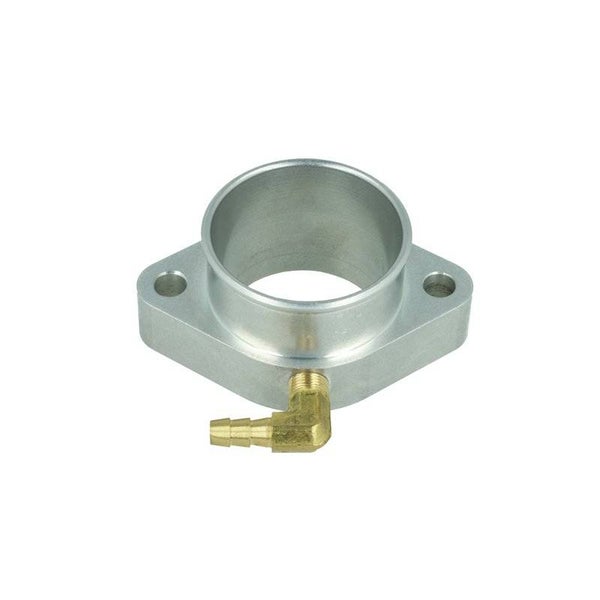

Adapter flange compressor outlet
CNC milled aluminum adapter for GT25R and GT28R
Several Garrett turbochargers of the GT25 to GT28 series do not feature a hose connection at the compressor housing but bolt-on flanges. These require an adapter to fit a hose to the compressor housing. The flange is made of aluminum CNC milled. Perfect fit and perfect seal thanks to premium seal ring. Additionally a 90° angled connector fort he wastegate actuator control line or the external wastegate is included.
Material: aluminum
Total dimensions: 41mm (total height), 15mm (socket only)
Dimensions cut-out: 40mm (Innen), 51mm (+ groove, hose connection diameter)
Hole distance: 75mm
Thread: M6
Version: For 2-bolt compressor housings(meist Skyline Versionen)
Extras / Features: bolts, seal ring, connection for control line included
For / Fits:
GT25R and GT28R (Druckluft)
GT25R, GT2554R, GT25, T25, T25BB
GT28R, GT2860R, GT28, T28, T28BB
as well as GT2860RS (GT28RS) with GT28R compressor housing
