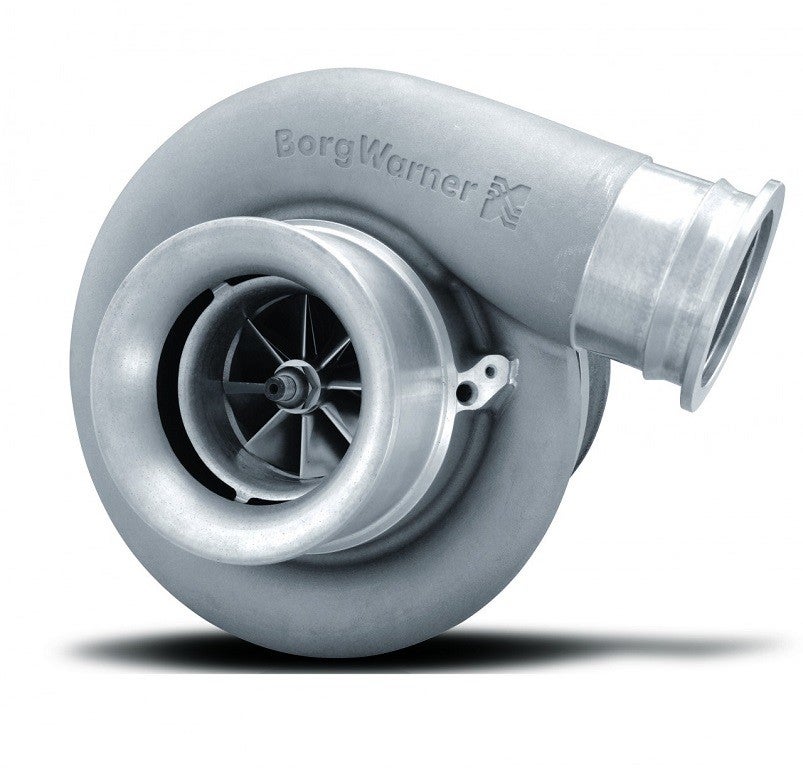

BorgWarner AirWerks S500SX Turbo - 88mm 120/110

BW part number 179188

Genuine BorgWarner AirWerks turbocharger

AirWerks turbochargers from BorgWarner Turbo Systems are dedicated aftermarket turbos for the performance sector. Proven line-produced parts (mostly from Schwitzer Turbo) are being combined to deliver high end tuning and motorsports performance while maintaining an ideal price/performance ratio.

The S500SX Series has been developed exclusively with the American sports compact class in mind. These turbochargers are even more focused on motorsports in terms of performance and drivability.

performance rating: 900 - 1475 HP
compressor housing: intake 152mm / pressure side V-Band
compressor wheel: inducer 88,19mm / exducer 120,20mm
turbine housing: 0.85 AR / header flange BorgWarner T6 singlescroll / turbine outlet BorgWarner V-Band
turbine wheel: inducer 99,08mm / exducer 109,73mm / external wastegate

- dual hydrodynamic journal bearing
- extended tip technology
- singlescroll turbine housing (twinscroll housings available)
- adjustable orientation of compressor housing and turbine housing
- compressor housing with anti-surge ports (High-Flow)
- compressor housing with optimized geometry
- CNC modified connections at intake and pressure side
- prepared to accept compressor wheel rpm sensor (EFR-sensor)


Different A/R ratio?

If you order an AirWerks turbocharger and wish to have a different AR you have to order the corresponding turbine housing separately.

Manufacturer item number: 179188
