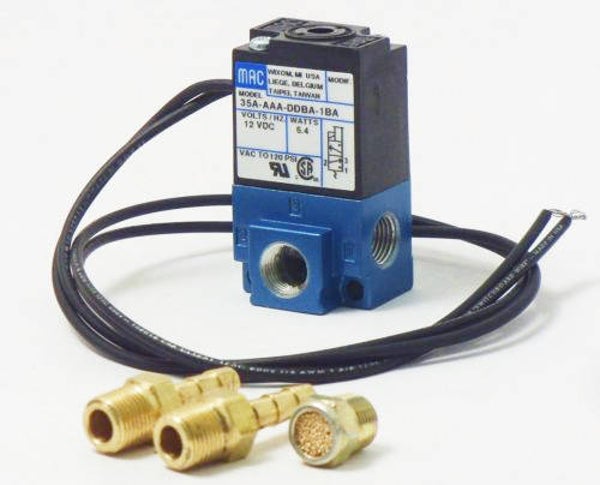

MAC 3 Port Boost Control Solenoid (MAC 35A-AAA-DDBA-1BA)
Why pay more than you have to?
This is the same valve that other ECU/EMS manufacturers put their own label on. Compatible and (in many cases identical to) Adaptronic, AEM, Autronic, Hondata, Halltech, Megasquirt, KMS etc etc. Interchangeable with 30-2400.
There is a good reason these valves are used by most aftermarket engine management systems, they are very stable (because of port design and VERY reliable. They are industrial quality.
We know of no Ecu's that these are not compatible with except for some stepper motor type drivers (rare).
It is up to you to determine suitability, we will accept returns if you have a problem AND keep the item in 100% perfect cosmetic shape (so don't mount it permanently).
Part number: 35A-AAA-DDBA-1BA
Type: 3 port solenoid , this is the most common method to control Boost. 4 Port also available.
5.4 watts ,25.4 ohm coil (measured), .45 Amps@12 volts
Full vacuum to 120 psi capable.
10-30 hz compatible, other ranges suitable depending on application.
PWM driven (Pulse width modulation)
Included: sintered air vent/muffler AND 2 x 3/16" hose barbs (the sintered mufflers are hard to find that is why we included them) SIntered vent avoids having to run another line to you air filter.
