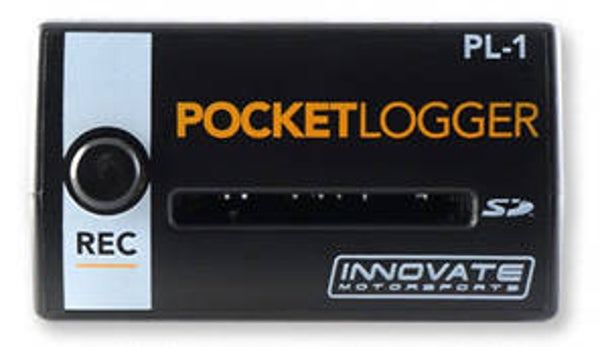

innovatemotorsports PL-1: Pocket Logger, Innovate MTS Datalogger P/N: 3875

€ 107,59

The PL-1 is the latest in Innovate Motorsports’ line-up of products to allow for easy data logging of your MTS (Modular Tuning System) compatible product. Whether you have an LC-1 & SSI-4, MTX gauges, or any other combination of Innovate Motorsports MTS devices, the PL-1 integrates seamlessly to record all the data from the connected devices.

  • Record up to 32-channels of Innovate MTS compatible devices
  • Sample rate of 12 times per second
  • Log directly to SD card (included) 2GB SD = 580 hours of recording!
  • Playback log data with powerful LogWorks software (available for download)
  • Positive lock connectors for all connections
  • Innovate MTS serial IN
  • Trigger recording on PL-1 and/or with "optional" remote push button

Specifications:

Power   Operating Voltage 12V to 18V DC Input Current, Operating 200mA Temperature   Operating 0°C to 70°C (32°F to 158°F) Inputs   Serial IN Innovate MTS Compatible Recording   SD Memory Card 17 Minutes Per MB (1024 MB in 1 GB) Card Format FAT 16 & FAT 32 Recording Sample Rate 12 Sa/S General   Dimensions 2.2" x 1" x 1.8" Weight 0.10 lb

Complete kit includes:

  • PL-1, Pocket Logger
  • 2GB SD Memory Card
  • SD Memory Card Reader, USB to PC
  • Power Cable, 12v
  • LogWorks 3.0 Software, available for download
  • MTS Patch Cable, Locking 4-pin to 4-pin, for newer devices like the MTX gauges
  • MTS Patch Cable, 2.5mm to 4-pin, needed for LC-1, SSI-4, TC-4, & LMA-3
